| 起源の場所: | 中国 |
|---|---|
| ブランド名: | VEGASHINE / OEM |
| モデル番号: | VGS-F10206041J-H770 |
| 最小注文数量: | 1台 |
| パッケージの詳細: | カートン |
| 受渡し時間: | 3から10の仕事日 |
| 支払条件: | T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力: | 1か月あたり1000ユニット |
| シャーシ: | 高品質のアルミニウムシートシャーシ | 寸法: | 430mm*470mm*45mm |
|---|---|---|---|
| シャーシの色: | 黒 | CPU: | インテル® 第 12/13/第 14 世代 Core™ i3/i5/i7 をサポート |
| メモリ: | 4 * DDR5 LO-DIMM、最大サポート 128GB | ギガビットLAN: | 6* Intel® I226V 2.5G LAN 4* XL710 10G 光ポート |

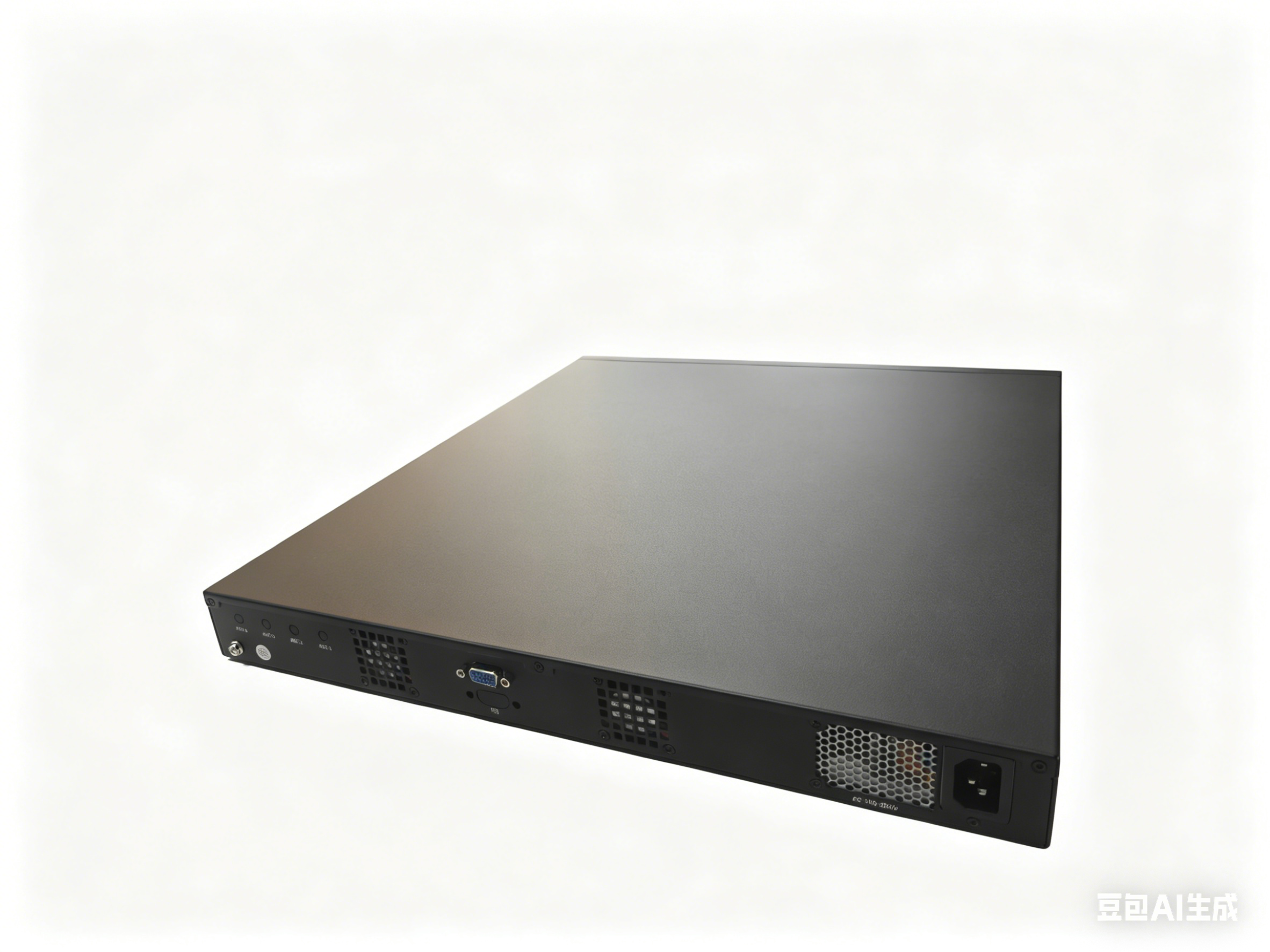

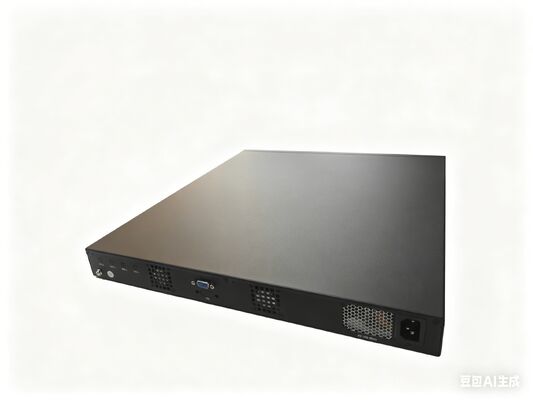

1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance support pFsense
Key Features
Support Intel® 12/13/14th Generation Core™ i3/i5/i7
Support 1*VGA/HDMI display output
4*DDR5 LO-DIMM,MAX support 128GB
Support 3*SATA3.0+1*SAS(4*SATA)+1*M.2 NVME/SATA
6*Intel I226V 2.5G electrical ports
4*XL710 10G optical ports
1* CISCO standard serial port console
2* USB3.0
1*M.2 support 4G/5G
1*M.2 support WIFI6
ATX PSU AC 110V ~ 240V
Dimension : 430mm*470mm*45mm
Paper box : 550 mm *560 mm *145mm
High quality galvanized steel sheet chassis
1U standard rack mounting method
Specifications
| Model No. | VGS-F10206041J-H770 | |
| Chassis | Color | Black |
| Dimension | 430mm*470mm*45mm | |
| Structure | 1U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 1U standard rack mounting method | |
| Platform | Processor | Support Intel® 12/13/14th Generation Core™ i3/i5/i7, Pentium®, Celeron® CPU,FCLGA1700 |
| Chipset | Adopt Intel® H770/H610/H660/B660 | |
| Graphics |
Integrated Intel® HD Graphics support 1*VGA/HDMI display output |
|
| Storage | Memory | 4*DDR5 LO-DIMM,MAX support 128GB |
| HDD | 3*SATA3.0+1*SAS(4*SATA) | |
| SSD | 1*M.2 NVME/SATA | |
| Audio | Audio | N/A |
| Expansion | WiFi /4G /5G |
1*M.2 support 4G/5G,1*SIM 1*M.2 support WIFI6 |

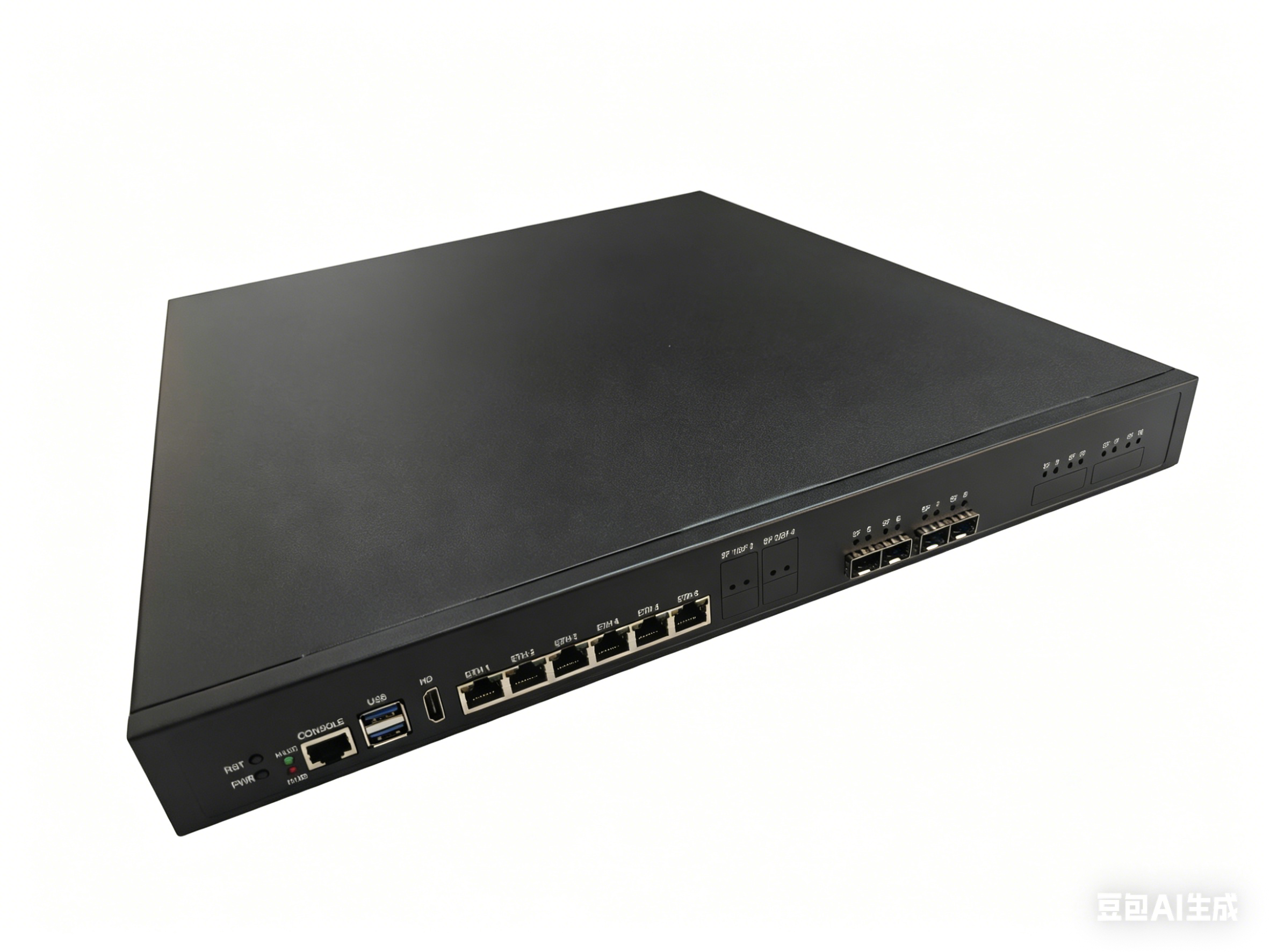

| Front I /O | Serial Port | 1* CISCO standard serial port console |
| USB | 2* USB3.0 | |
| LAN |
6*Intel I226V 2.5G electrical ports 4*XL710 10G optical ports Support bypass 2x segment, LAN1/2 & 3/4 (Optional) |
|
| SFP | Support 4*10G SFP(Optional)+2/4*10GSFP(Optional)+2/4*10G SFP(Optional) | |
| LED | 1* HDD LED, 1* Power LED | |

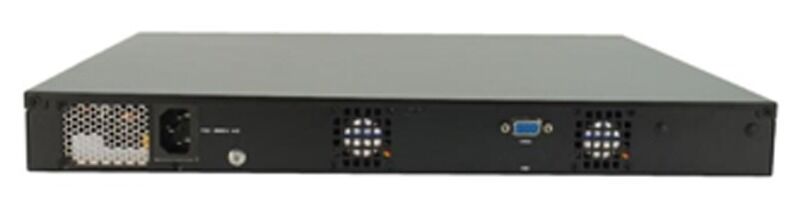

| Back I/O | Display | 1*VGA/1*HDMI(default VGA) |
| Power Interface | 1* ATX Power Interface | |
| Power Supply | Input |
ATX PSU AC 110V ~ 240V |
| Reliability | Operating Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 10/11, Linux, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos, Pfsense, iKuai, WayOS etc. | |
