| 起源の場所: | 中国 |
|---|---|
| ブランド名: | VEGASHINE / OEM |
| モデル番号: | VGS-BF13104003-J6412 |
| 最小注文数量: | 1ユニット |
| パッケージの詳細: | カートン |
| 受渡し時間: | 3から10の仕事日 |
| 支払条件: | T/T、Western Union、MoneyGram |
| 供給の能力: | 1か月あたり1000ユニット |
| シャーシ: | アルミシャーシ | 寸法: | 136mm*126mm*40mm |
|---|---|---|---|
| シャーシの色: | 黒 | CPU: | セルロン J6412 四コア 4スレッド 2.0GHz プロセッサ |
| ラム: | 2 *DDR4 | ギガビットLAN: | 4* Intel i226 2.5GLAN |
| COMの港: | 1 * CISCO 標準 RS232 シリアル |
Quad cores J6412 4* 2.5GLAN firewall PC appliance soft router support pFsense
Key Features
Integrated Intel® Celeron J6412 quad core 4 threads 2.0G hz processor
Burst Frequency 2.6 GHz
Intel® UHD Graphics for 10th Gen Intel® Processors
support 1*H-D-M-I +1*DP
Support 2*DDR4 3200Mhz up to 32GB
1*SATA3.0
1*M.2 (2280) NVMe
Onboard 4* Intel i226 2.5GLAN
5*USB2.0 , 1*USB3.0
1*DP
1* H-D-M-I display output
4* RJ45 Intel i226 2.5GLAN
1* RJ45 Csico standard COM
DC 12V 4A power supply
Dimension: 136mm*126mm*40mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | VGS-BF13104003-J6412 | |
| Chassis | Color | Black |
| Dimension | 136mm*126mm*40mm | |
| Material | aluminium alloy chassis | |
| Motherboard | Processor |
Integrated Intel® Celeron J6412 quad core 4 threads 2.0G hz processor Burst Frequency 2.6 GHz TDP 10W |
| Chipset | Intel® Elkhart Lake J6412 | |
| Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors support 1*H-D-M-I +1*DP |
|
| Memory | Support 2*DDR4 3200Mhz up to 32GB | |
| BIOS | AMI BFI | |
| Storage | SATA | 1*SATA3.0 |
| M.2 | 1*M.2 (2280) NVMe | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 4* Intel i226 2.5GLAN |
| WiFi | N/A | |

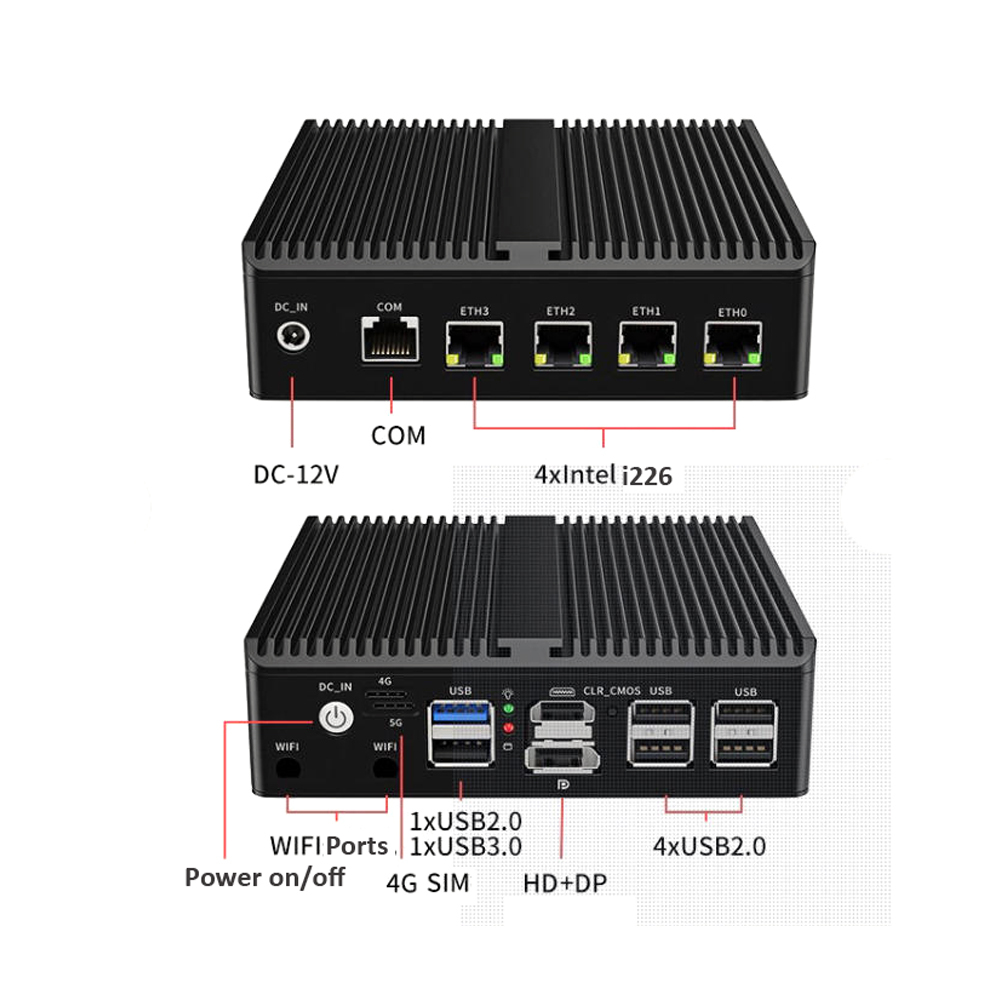

| Interface | Front I / O | 1*Power button |
| 1*SIM slot | ||
| 5*USB2.0 , 1*USB3.0 | ||
| 1*DP | ||
| 1* H-D-M-I display output | ||
| Back I / O | 4* RJ45 Intel i226 2.5GLAN | |
| 1* RJ45 Csico standard COM | ||
| 1*DC-IN power supply interface | ||
| Expansion | Mini PCIe |
1 *mini PCIE channel support USB signal 3G/4G module, 1*M.2 2242 support 5G |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~50℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-90%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
